Edamame

The world’s only timeline-to-broadcast-slate tool

Premiere ProDaVinci ResolveFinal Cut ProAvid

Stop typing
timecodes.

Segment TC turns timeline markers into a clean 1920×1080 broadcast slate with accurate IN, OUT and TRT values—ready in seconds.

Get Segment TC ↗ See the output ↓
  • 2editing apps
  • 7segments per slate
  • 0timeline changes
SEGMENT TC
SERIES TITLEYOUR SHOW
EPISODE08
MEDIA IDEP_008
INOUTINOUT
01

MARKERS IN

SLATE OUT00:00:02

The broadcast slate tool editors were missing

Your timeline already knows the answer.

Editors lose time copying timecodes, calculating durations and checking formatting. Segment TC reads the markers you already placed and builds the slate for you.

✕ Repeating calculations✕ Copy-and-paste errors✕ Rebuilding the same slate

Three steps. One clean handoff.

Mark. Generate. Deliver.

01

Mark your segments

Use duration markers, or paired point markers, to define every segment IN and OUT.

02
↗

Generate once

Add the title, episode and media ID. Segment TC calculates every TRT and the total duration.

03
TC

Export the slate

Receive a full-HD PNG that is consistent, readable and ready for the delivery package.

What comes out

Broadcast-ready. No spreadsheet required.

The finished 1920×1080 slate contains the show details, total duration and segment-by-segment IN, OUT and TRT values.

1920 × 1080 PNGWhole-second snappingUp to 7 segments

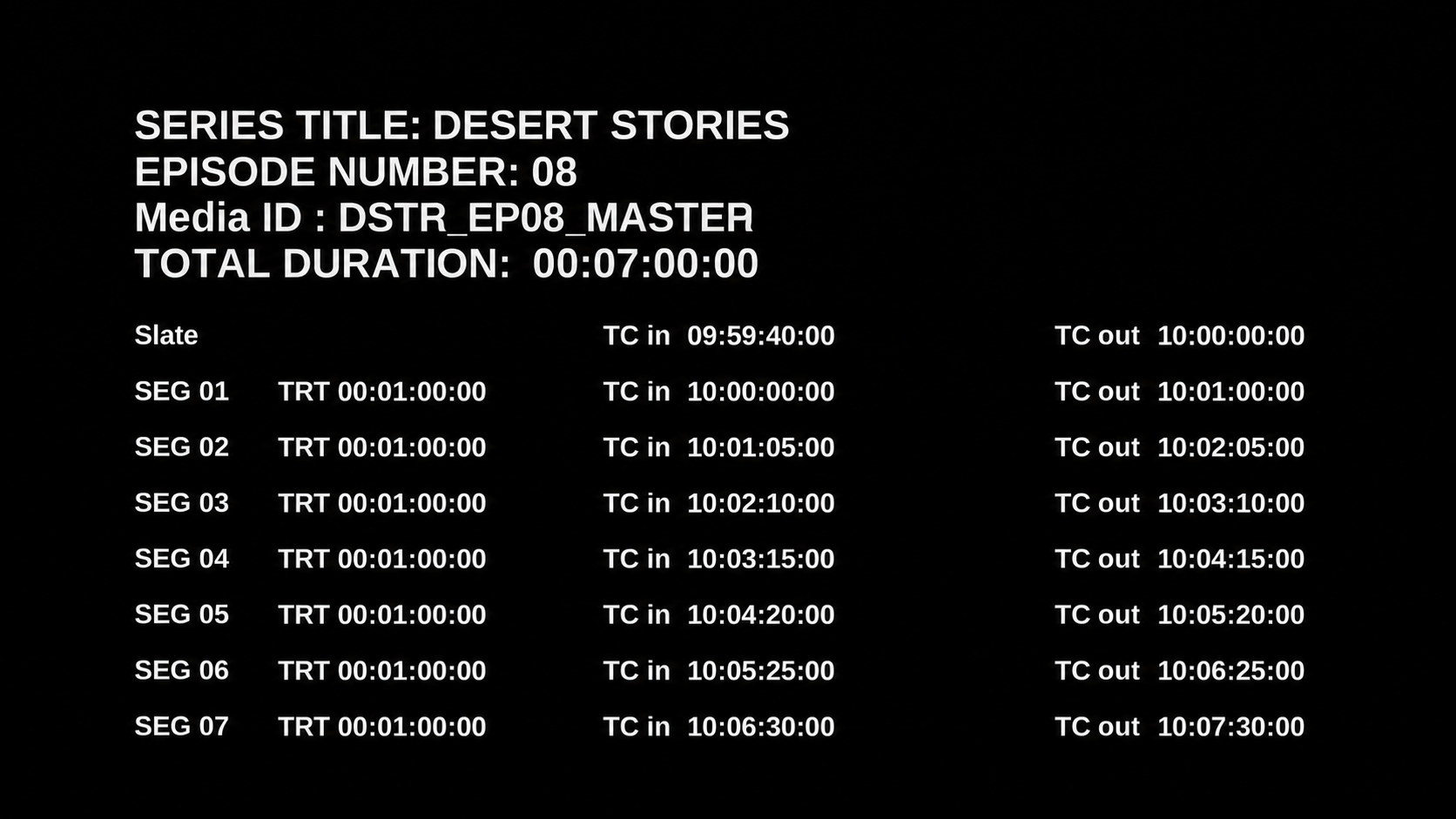

Example Segment TC slate for Desert Stories with seven segment timecode rows
Example output generated from timeline markers

Choose your edit bay

One workflow.
Two editions.

PrWINDOWS + MAC-OS

Adobe Premiere Pro

A native panel that works alongside your timeline and creates the finished slate without leaving Premiere.

  • CCX installer
  • Marker-based segment detection
  • PNG export workflow
  • Non-destructive
WINDOWS + MAC-OS

DaVinci Resolve Studio

A Utility script that generates the same slate and imports the PNG directly into the current Media Pool.

  • Python Utility script
  • Marker-based segment detection
  • Automatic Media Pool import
  • Non-destructive

Supported integer frame rates: 24, 25, 30, 50 and 60 fps. Drop-frame and fractional frame rates are not currently supported.

Installation guide

Install once.
Keep editing.

Your download contains both editions. Follow the guide for your edit system, then restart the host application before opening Segment TC.

Premiere Pro ↓ DaVinci Resolve ↓
Pr

Windows + MAC-OS

Adobe Premiere Pro

Requires Premiere Pro 25.6 or later and the Adobe Creative Cloud desktop app.

  1. 1

    Extract the download

    Open the Segment TC package and locate Premiere Pro - Windows/SegmentTC_Premiere_v0.5.8.ccx.

  2. 2

    Install the CCX

    Double-click the .ccx file. Creative Cloud Desktop opens automatically. Choose Install when Adobe shows the third-party plugin notice.

  3. 3

    Open the panel

    Restart Premiere Pro, then choose Window → UXP Plugins → Segment TC. Dock the panel wherever it fits your workspace.

  4. 4

    Generate your first slate

    Open a sequence, add duration markers or paired IN/OUT point markers, enter the title, episode and media ID, then click Generate Segment Slate.

Adobe CCX installation guide ↗ Creative Cloud plugin help ↗
Premiere troubleshooting +

If the installer does not open, launch Creative Cloud Desktop first and double-click the CCX again. Make sure Premiere Pro 25.6 or later has been opened at least once. If the panel is missing after installation, restart Premiere and check Window → UXP Plugins.

DaVinci Resolve

Windows + MAC-OS

DaVinci Resolve Studio

The Resolve edition is a Python Utility script. Install Python with Tkinter and Pillow before copying the script.

01

Install the prerequisites

Install Python 3 from python.org ↗. On Windows, enable Add Python to PATH in the installer. The python.org MAC-OS installer includes Tkinter.

Windows — PowerShell or Command Promptpy -m pip install --upgrade Pillow
MAC-OS — Terminalpython3 -m pip install --upgrade Pillow

Pillow installation reference: official Pillow documentation ↗

02

Verify Python, Tkinter and Pillow

Run the command for your system. A small Tk window should open and the terminal should print Segment TC ready.

Windowspy -c "import tkinter; from PIL import Image; print('Segment TC ready')"
MAC-OSpython3 -c "import tkinter; from PIL import Image; print('Segment TC ready')"
03

Copy the Utility script

From the downloaded package, copy SegmentTC_Resolve.py into the Utility folder for your operating system. Create the final folders if they do not exist.

Windows — all usersC:\ProgramData\Blackmagic Design\DaVinci Resolve\Fusion\Scripts\Utility\
Windows — current user%APPDATA%\Blackmagic Design\DaVinci Resolve\Support\Fusion\Scripts\Utility\
MAC-OS — all users/Library/Application Support/Blackmagic Design/DaVinci Resolve/Fusion/Scripts/Utility/
MAC-OS — current user~/Library/Application Support/Blackmagic Design/DaVinci Resolve/Fusion/Scripts/Utility/

MAC-OS tip: In Finder choose Go → Go to Folder…, paste the path, then press Return.

04

Launch Segment TC

Restart DaVinci Resolve Studio. Open a project and timeline, then choose Workspace → Scripts → Utility → SegmentTC_Resolve.

Use timeline markers, not clip markers. Enter the series title, episode number and media ID, then click Generate PNG + Import to Media Pool and choose where to save the PNG.

DaVinci Resolve official page ↗ Blackmagic Design support & manuals ↗ Download Python 3 ↗
DaVinci troubleshooting +

Script is not listed: confirm the filename is SegmentTC_Resolve.py, confirm it is inside the final Utility folder, then fully restart Resolve.

Pillow is missing: repeat the install command using the Python installation that Resolve can access.

Tkinter is missing: reinstall Python from python.org with Tcl/Tk support, then repeat the verification command.

No markers found: move the markers to the timeline ruler. Markers attached to individual clips are not read.

Built for real delivery work

The tiny tool that removes a very annoying job.

01

Accurate calculations

IN, OUT, TRT and total duration are calculated from your timeline data.

02

Consistent formatting

Every export follows the same clean full-HD slate layout.

03

Timeline stays untouched

Segment TC reads markers and creates a file. It does not edit, move or place clips.

04

Fast to learn

If you can place markers, you already know almost the entire workflow.

Choose your Segment TC license

Ship the slate.
Save the time.

Both plans include the Premiere Pro and DaVinci Resolve Studio editions, installation guides and direct email support.

Best value

Annual license$129/ year

  • Premiere Pro edition
  • DaVinci Resolve Studio edition
  • Updates while subscribed
  • Direct support by email
Choose annual ↗

Lifetime license$299one time

  • Premiere Pro edition
  • DaVinci Resolve Studio edition
  • Permanent use of purchased version
  • Direct support by email
Choose lifetime ↗

Secure checkout powered by Stripe. Payment is charged in AED at checkout.

Questions, answered

Before you install.

Does Segment TC change my timeline?+

No. It reads timeline markers and generates a separate PNG. It does not move clips or place anything on the timeline.

Which markers should I use?+

Duration markers can define complete ranges. Single-frame point markers can also be paired chronologically as IN and OUT points.

What does the DaVinci edition require?+

DaVinci Resolve Studio, Python 3 with Tkinter, and Pillow in the Python environment used by Resolve. The included guide walks through installation.

Does it work with drop-frame timecode?+

Not in the current release. Segment TC currently supports 24, 25, 30, 50 and 60 integer frame rates.

Can I use it on both Windows and Mac?+

Yes. Both the Premiere Pro and DaVinci Resolve Studio editions work on Windows and MAC-OS.

How does the license work?+

The annual license renews at $129 per year and includes updates while active. The $299 lifetime license is a one-time payment for permanent use of the purchased version.
